Energy Monitoring Operator
Real-time awareness · Hybrid solar + wind system

2Sources

5Components

24VSystem

2kWInverter

Section 02 · Architecture

System Flow

☀️

Solar

400W

🌀

Wind

400W

→

⚡

Controller

Hybrid

→

🔋

Battery

200Ah LiFePO4

→

🔌

Inverter

2000W Sine

→

💻

Load

AC Output

Section 03 · Hardware Stack

Components

This hardware stack shows the current public Pulse direction and the kind of energy lane being built around Sage OS. It is reference material for the workflow in progress, not a promise that a customer download includes this exact hardware, exact tuning, or a finished identical system.

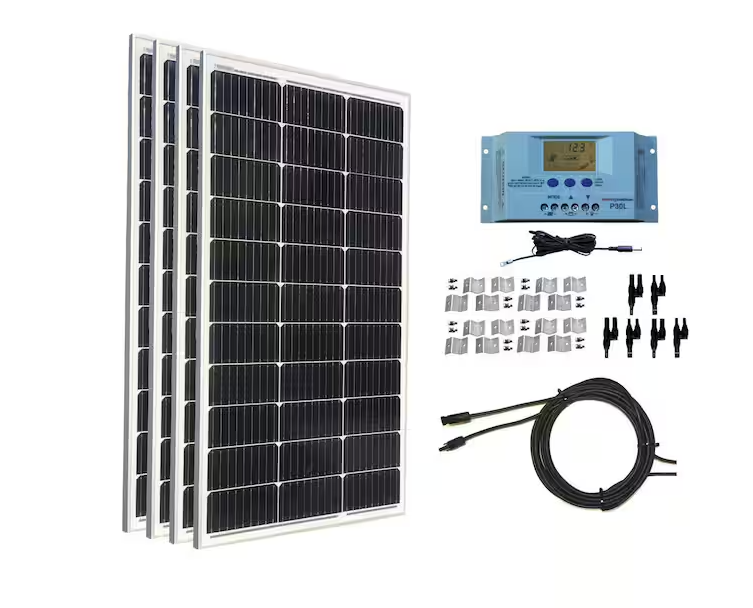

Solar Panel

Primary energy source. Converts sunlight to DC power.

400W · Monocrystalline

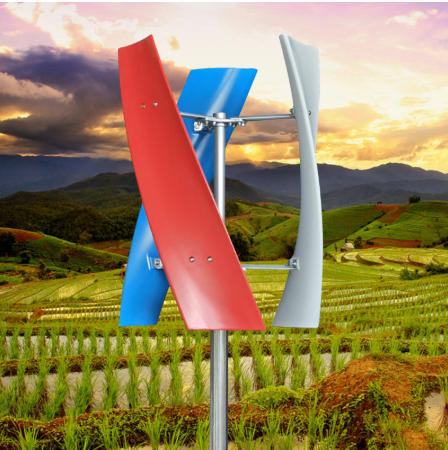

Wind Turbine

Secondary source. Generates when solar is low.

400W · 24V · Vertical Axis

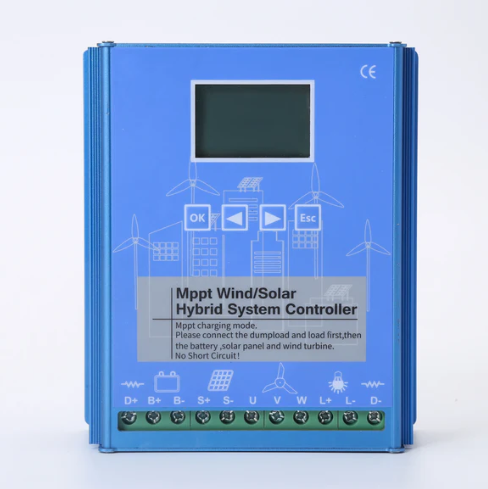

Hybrid Controller

Routes solar + wind input. Manages charge and dump load.

24V/48V · Wind + Solar

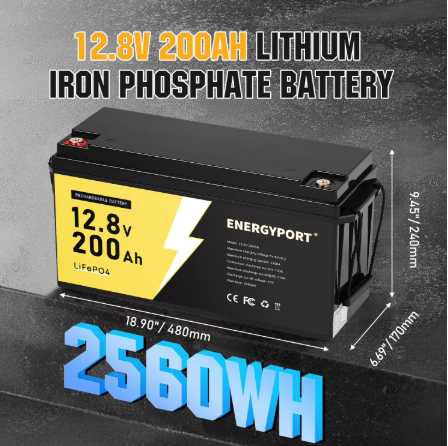

LiFePO4 Battery

Energy storage. Built-in BMS for safe charge cycles.

200Ah · Smart BMS

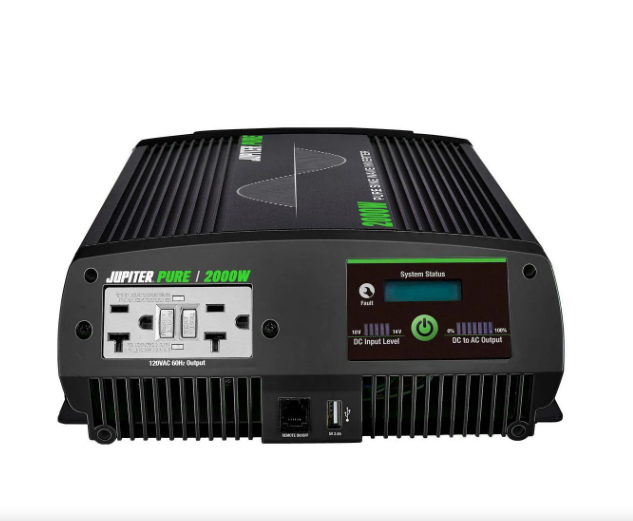

Pure Sine Inverter

Converts DC battery power to clean AC output for loads.

2000W / 4000W Peak

Section 04 · Operator Role

What Pulse Monitors

Energy input from solar and wind — live wattage per source

Battery state — charge level, voltage, cycle health

System load — what is drawing power and how much

Anomaly detection — drops, surges, BMS alerts

Runtime estimation — how long current charge lasts under load

Telemetry history — monitoring snapshots and runtime estimates for the energy lane

Section 05 · Build Phases

Roadmap

Phase 1

Public Hardware Blueprint

This phase shows the current reference stack and power-flow direction for the Pulse energy lane. It is a workflow-in-progress blueprint, not a shipped identical hardware bundle.

Active

Phase 2

Bench Testing + Clean Reads

Next step is cleaner bench testing, runtime observation, and better signal reads before claiming real live hardware telemetry.

Phase 3

Real Telemetry Integration

Pulse moves from reference visuals into true device reads only when the hardware path is actually wired and reporting honestly.

Phase 4

Unified Alert Surface

Energy signals, battery state, load changes, and system alerts get organized into one clearer public monitoring surface.

Phase 5

Long-Term Autonomous Layer

Long-term direction only: richer automation, smarter routing, and deeper Sage OS integration after the hardware and telemetry layers are genuinely stable.

Section 06 · Future Integration

Pulse + Sage OS

Live Reads

Pulse pulls real-time data from the energy system. Every watt accounted for.

Dashboard State

System state pushed to Sage OS interface. Any operator can query it.

Alerts

Battery low. Solar drop. BMS flag. Pulse tells Sage immediately. Sage tells Captain.

Optimization

Usage patterns logged. Pulse recommends load scheduling based on available energy.

Voice Control

"Pulse, what's the battery at?" — Sage answers from live system data. No dashboard needed.

Autonomous Mode

Phase 5: Pulse manages the full system on its own. Flags only when human decision is needed.

Section 07 · Sage OS Network

Part of Something Bigger

Pulse is an operator lane inside Sage OS, not a separate shipped customer product. In Sage Full, Pulse sits inside the public operator network and handles monitoring signals that can feed the rest of the system. The page shows the current public workflow direction and reference stack, while the buyer still builds their own version from scratch with their own components, settings, and environment.
